Sidebar on mobile devices

Hi everybody,

I am not able to show sidebar on mobile devices or on desktop if the window is smaller. The toggle button is shown, but the sidebar is not sliding into view:
Simple main layout looks like this:

@inherits LayoutComponentBase

<AuthorizeView>
    <Authorized>
        <RadzenLayout style="height: 100%;">
            <RadzenHeader>
                <RadzenStack Orientation="Orientation.Horizontal" AlignItems="AlignItems.Center" Gap="0">
                    <RadzenSidebarToggle Click="@(() => SidebarExpanded = !SidebarExpanded)" />
                    <RadzenLabel Text="@TranslationService?.GetText("Title")" />
                </RadzenStack>
            </RadzenHeader>
            <RadzenSidebar Style="width:auto" Responsive="false">
                <RadzenPanelMenu DisplayStyle="@(SidebarExpanded ? MenuItemDisplayStyle.IconAndText : MenuItemDisplayStyle.Icon)" ShowArrow=false>
                    <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuDashboard")" Icon="dashboard" Click="@(() => NavigateTo("dashboard"))" />
                    <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuRecipes")" Icon="scale" Click="@(() => NavigateTo("recipes"))" />
                    <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuGroups")" Icon="groups" Click="@(() => NavigateTo("groups"))" />
                    <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuProfile")" Icon="face_6" Click="@(() => NavigateTo("profile"))" />
                    <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuShopping")" Icon="local_grocery_store" Click="@(() => NavigateTo("shopping"))" />
                    <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuScheduler")" Icon="calendar_month" Click="@(() => NavigateTo("scheduler"))" />
                    <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuSettings")" Icon="settings" Click="@(() => NavigateTo("settings"))" />
                </RadzenPanelMenu>
            </RadzenSidebar>
            <RadzenBody class="rz-p-0">
                <div class="main" style="height: 100%">
                    <div class="coctoc-content" style="height: 100%; padding: 10px;">
                        @Body
                    </div>
                </div>
            </RadzenBody>
        </RadzenLayout>
    </Authorized>
    <NotAuthorized>
        <div class="main">
            <div class="top-row px-4">

            </div>

            <div class="content px-4" style="overflow-y: hidden;">
                @Body
            </div>
        </div>
    </NotAuthorized>
</AuthorizeView>

<RadzenComponents />

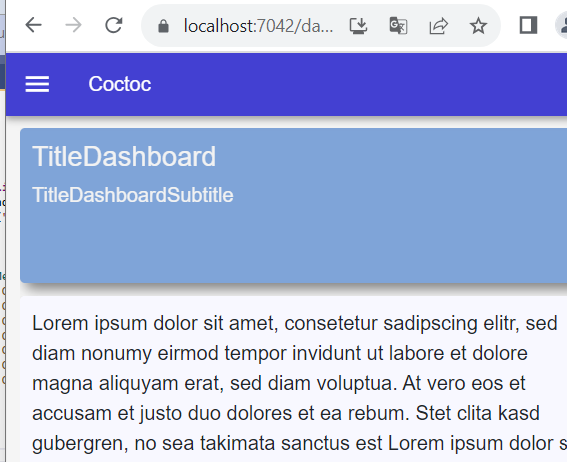

Menu button is visible, but nothing is happend when clicking on it:

Is it possible to get the same behaviour for desktop and mobile devices?

Hi @Softwerker04,

Seems to work as expected here: Blazor DataGrid commponent with code-less paging, sorting and filtering of IQueryable data sources

I can show the sidebar via the toggle button just fine. You can check with your browser developer tools if the sidebar is rendered anywhere but just not visible.

Hi @korchev,

thanks for your fast answer. Indeed, this is working for me:

@inherits LayoutComponentBase

<AuthorizeView>
    <Authorized>
        <RadzenLayout>
            <RadzenHeader>
                <RadzenStack Orientation="Orientation.Horizontal" AlignItems="AlignItems.Center" Gap="0">
                    <RadzenSidebarToggle Click="@(() => SidebarExpanded = !SidebarExpanded)" />
                    <RadzenLabel Text="@TranslationService?.GetText("Title")" />
                </RadzenStack>
            </RadzenHeader>
            <div style="display: flex; flex-direction: column;">
                <RadzenSidebar Style="width: auto; height: 100%;" @bind-Expanded="@SidebarExpanded">
                    <RadzenPanelMenu>
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuDashboard")" Icon="dashboard" Click="@(() => NavigateTo("dashboard"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuRecipes")" Icon="scale" Click="@(() => NavigateTo("recipes"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuGroups")" Icon="groups" Click="@(() => NavigateTo("groups"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuProfile")" Icon="face_6" Click="@(() => NavigateTo("profile"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuShopping")" Icon="local_grocery_store" Click="@(() => NavigateTo("shopping"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuScheduler")" Icon="calendar_month" Click="@(() => NavigateTo("scheduler"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuSettings")" Icon="settings" Click="@(() => NavigateTo("settings"))" />
                    </RadzenPanelMenu>
                </RadzenSidebar>
            </div>
            <RadzenBody class="rz-p-4">
                <div class="main" style="height: 100%">
                    <div class="coctoc-content" style="height: 100%">
                        @Body
                    </div>
                </div>
            </RadzenBody>
        </RadzenLayout>
    </Authorized>
    <NotAuthorized>
        <div class="main">
            <div class="top-row px-4">

            </div>

            <div class="content px-4" style="overflow-y: hidden;">
                @Body
            </div>
        </div>
    </NotAuthorized>
</AuthorizeView>

<RadzenComponents />

But the behaviour is different when I try to implement an icon sidebar like this:

@inherits LayoutComponentBase

<AuthorizeView>
    <Authorized>
        <RadzenLayout>
            <RadzenHeader>
                <RadzenStack Orientation="Orientation.Horizontal" AlignItems="AlignItems.Center" Gap="0">
                    <RadzenSidebarToggle Click="@(() => SidebarExpanded = !SidebarExpanded)" />
                    <RadzenLabel Text="@TranslationService?.GetText("Title")" />
                </RadzenStack>
            </RadzenHeader>
            <div style="display: flex; flex-direction: column;">
                <RadzenSidebar Style="width: auto; height: 100%;">
                    <RadzenPanelMenu DisplayStyle="@(SidebarExpanded?MenuItemDisplayStyle.IconAndText:MenuItemDisplayStyle.Icon)" ShowArrow=false>
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuDashboard")" Icon="dashboard" Click="@(() => NavigateTo("dashboard"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuRecipes")" Icon="scale" Click="@(() => NavigateTo("recipes"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuGroups")" Icon="groups" Click="@(() => NavigateTo("groups"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuProfile")" Icon="face_6" Click="@(() => NavigateTo("profile"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuShopping")" Icon="local_grocery_store" Click="@(() => NavigateTo("shopping"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuScheduler")" Icon="calendar_month" Click="@(() => NavigateTo("scheduler"))" />
                        <RadzenPanelMenuItem Text="@TranslationService?.GetText("MenuSettings")" Icon="settings" Click="@(() => NavigateTo("settings"))" />
                    </RadzenPanelMenu>
                </RadzenSidebar>
            </div>
            <RadzenBody class="rz-p-4">
                <div class="main" style="height: 100%">
                    <div class="coctoc-content" style="height: 100%">
                        @Body
                    </div>
                </div>
            </RadzenBody>
        </RadzenLayout>
    </Authorized>
    <NotAuthorized>
        <div class="main">
            <div class="top-row px-4">

            </div>

            <div class="content px-4" style="overflow-y: hidden;">
                @Body
            </div>
        </div>
    </NotAuthorized>
</AuthorizeView>

<RadzenComponents />

For me the icon sidebar is working on dektop, but not on mobile.

I also set the Responsible flag at Sidebar to True. But it has no effect: when browser window becomes smaller, the sidebar collapsed.

Try this:

<RadzenSidebar Responsive="false" style="width: max-content">

Responsive=false will stop the default behavior which hides the sidebar on mobile devices. width: max-content should make it work.

@Softwerker04 Did you ever work out a solution for this? I have the same issue. Sidebar works fine in desktop browser but on mobile, either A the sidebar is still shown, or if I set Responsive to true, the Sidebar will hide, but will not open on hamburger menu click. Have tried korchev's suggesting, no change.

I should add, I'm using the DisplayStyle like this: <RadzenPanelMenu DisplayStyle="@(sidebarExpanded ? MenuItemDisplayStyle.IconAndText : MenuItemDisplayStyle.Icon)" ShowArrow="false">

I'll just try and awaken the zombie-thread, as i had a similar experience. What i did to make it work is:

<RadzenHeader>
    <RadzenStack Orientation="Orientation.Horizontal" AlignItems="AlignItems.Center" Gap="0">
        <RadzenSidebarToggle Click="@(() => sidebarExpanded = !sidebarExpanded)" />
        <RadzenLabel Text="TourneyKeeper" />
    </RadzenStack>
</RadzenHeader>

<RadzenSidebar Responsive="true" Expanded="@sidebarExpanded" Style="width: max-content">
    <RadzenPanelMenu DisplayStyle="@(sidebarExpanded ? MenuItemDisplayStyle.IconAndText : MenuItemDisplayStyle.Icon)" ShowArrow="false">

Thank you, Roune. I will give this a try.
