Datagrid RowSelect not visually selected

Radzen.Blazor Components
1

Hi!

Trying out the DataGrid with RowSelect and got into a strange problem:

This one works fully, both OnValueClick gets called and row gets visually selected:

RowSelect="@OnValueClick" Data="@afValues" AllowSorting="true" AllowFiltering="true" AllowPaging="true" PageSize="10" TItem="CAfValue" ColumnWidth="150px" Style="width: 100%;"

This one, however manages to call the OnAttributeClick but does not visually render the row as selected:

RowSelect="@OnAttributeClick" Data="@attributes" AllowSorting="true" AllowFiltering="true" AllowPaging="true" PageSize="20" TItem="CAfAttribute" ColumnWidth="150px" Style="width: 100%;"

What can possibly affect this behavior?
Any suggestions?

BR
Ove

2

Can you post more info about afValues, attributes, item types and what's the code of RowSelect event handlers?

3

Sure! I'll start with this:

Working example:

<RadzenGrid RowSelect="@OnValueClick" Data="@afValues" AllowSorting="true" AllowFiltering="true" AllowPaging="true" PageSize="10" TItem="CAfValue" ColumnWidth="150px" Style="width: 100%;">
	<Columns>
		<RadzenGridColumn TItem="CAfValue" Property="HistDateTime" Title="Date" />
		<RadzenGridColumn TItem="CAfValue" Property="HistValueStr" Title="Value" />
	</Columns>
</RadzenGrid>

Model:

public class CAfValue : ICAfValue
{
    public string ElementId { get; set; }
    public string AttributeId { get; set; }
    public DateTime HistDateTime { get; set; }
    public double? HistValueNum { get; set; }
    public string HistValueStr { get; set; }
    public bool IsGood { get; set; }
}

Code is deliberately doing nothing:

protected async Task OnValueClick(CAfValue args)
{
}

Non-working example: (OnAttributeClick gets run but row is not visually selected),

<RadzenGrid RowSelect="@OnAttributeClick" Data="@attributes" AllowSorting="true" AllowFiltering="true" AllowPaging="true" PageSize="20" TItem="CAfAttribute" ColumnWidth="150px" Style="width: 100%;">
	<Columns>
		<RadzenGridColumn TItem="CAfAttribute" Property="Name" Title="Name" />
		<RadzenGridColumn TItem="CAfAttribute" Property="CurrentValueNum" Title="Current value" />
		<RadzenGridColumn TItem="CAfAttribute" Property="DefaultUOM" Title="UOM" />
	</Columns>
</RadzenGrid>

Model:

public class CAfAttribute
{
    public string ElementId { get; set; }
    public string HistDateTime { get; set; }
    public string AttributeId { get; set; }
    public string LabId { get; set; }
    public bool GetHistData { get; set; }
    public string Name { get; set; }
    public string ElementPath { get; set; }
    public DateTime HistDateTime { get; set; }
    public string ImportUOM { get; set; }
    public string DefaultUOM { get; set; }
    public string Id { get; set; }
    public string AttributePath { get; set; }
    public string Description { get; set; }
    public string Type { get; set; }
    public bool HasChildren { get; set; }
    public string ElementName { get; set; }
    public bool IsDeleted { get; set; }
    public bool IsExcluded { get; set; }
    public bool IsHidden { get; set; }
    public bool IsManualDataEntry { get; set; }
    public string CurrentValueStr { get; set; }
    public double? CurrentValueNum { get; set; }
    public string HistValueStr { get; set; }
    public double? HistValueNum { get; set; }
}

Code is deliberately doing nothing, but gets called:

protected async Task OnAttributeClick(CAfAttribute args)
{
}
4

Any difference between both enumerables?

5

They look like this:

    // Attributes section
    protected IEnumerable<CAfAttribute> attributes;

    // Values section
    protected IEnumerable<CAfValue> afValues;

The only real difference are the models. I have tried to modify/shorten CAfAttribute but to no avail.
I'm clearly missing out something here...

6

You have two properties with same name but with different type - this code cannot be compiled.

7

Sorry, cut'n paste error, should be
public DateTime HistDateTimeDate { get; set; }

8

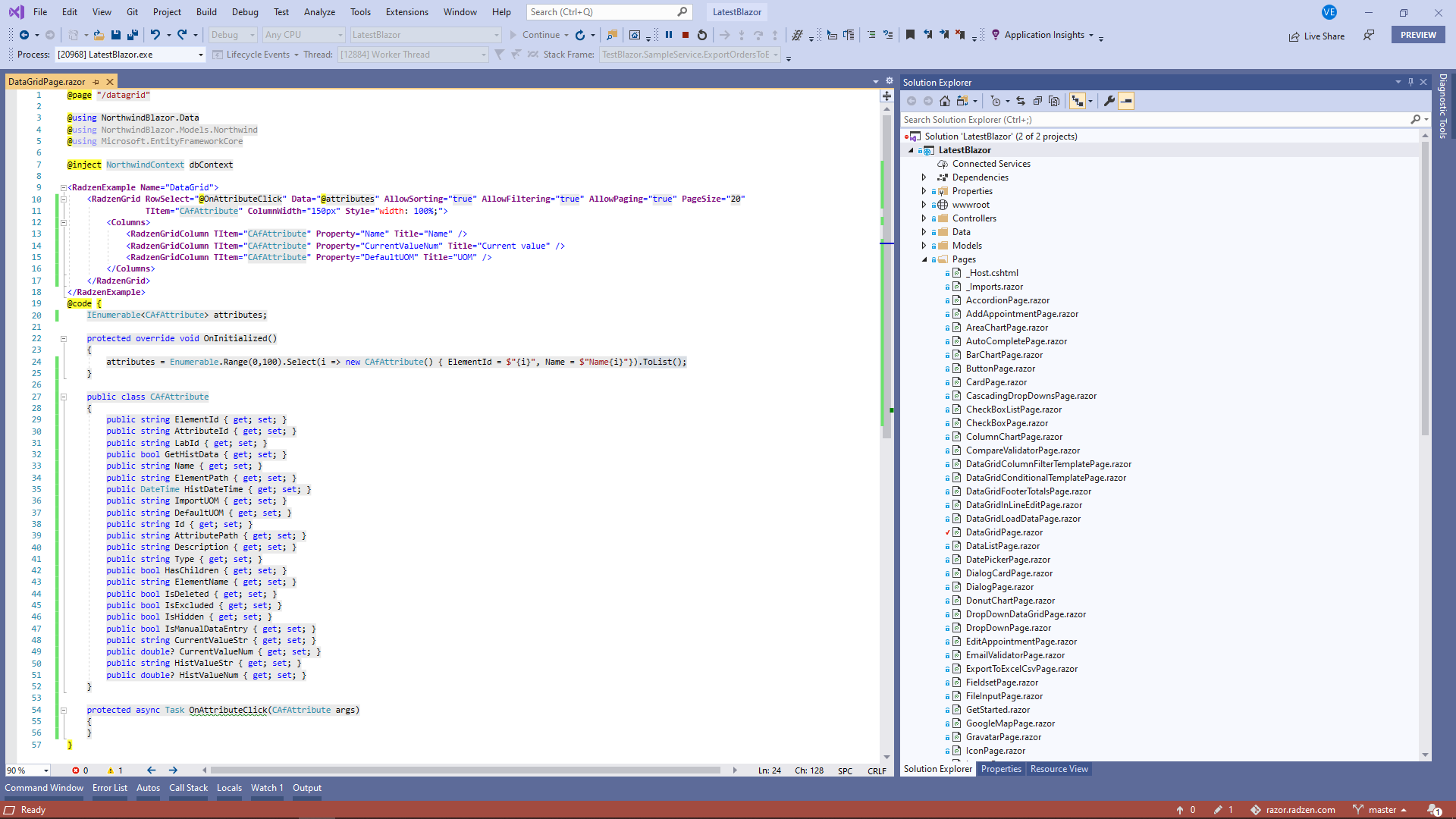

Try to convert the enumerable to IList:

image1920×1080 253 KB

image1920×1080 119 KB

1 Like
9

Yes! Of course!

Thanks for excellent support!
Ove
