Run demo Blazor DataGrid save/load settings with 2+ columns without Property Broken. After save setting and load, browser freezes, only clearing the cache helps (delete settings)
@using Radzen
@using RadzenBlazorDemos.Data
@using RadzenBlazorDemos.Models.Northwind
@using Microsoft.EntityFrameworkCore
@using RadzenBlazorDemos.Services
@using Microsoft.JSInterop
@using System.Text.Json
@inject IJSRuntime JSRuntime
@inject NavigationManager NavigationManager
@inherits DbContextPage
<p>This example shows how to save/load DataGrid state using Settings property.</p>
<p>The state includes current page index, page size, groups and columns filter, sort, order, width and visibility.</p>
<RadzenButton Click="@(args => Settings = null)" Text="Clear saved settings" Style="margin-bottom: 16px" />
<RadzenButton Click="@(args => NavigationManager.NavigateTo("/datagrid-save-settings", true))" Text="Reload" Style="margin-bottom: 16px" />
<RadzenDataGrid @bind-Settings="@Settings" AllowFiltering="true" AllowColumnPicking="true" AllowGrouping="true" AllowPaging="true" PageSize="4"
AllowSorting="true" AllowMultiColumnSorting="true" ShowMultiColumnSortingIndex="true"
AllowColumnResize="true" AllowColumnReorder="true" ColumnWidth="200px"
FilterPopupRenderMode="PopupRenderMode.OnDemand" FilterCaseSensitivity="FilterCaseSensitivity.CaseInsensitive" Data="@employees" TItem="Employee">
<Columns>
<RadzenDataGridColumn TItem="Employee" Title="Employee" Sortable="false" Filterable="false">
<Template Context="data">
<RadzenImage Path="@data.Photo" style="width: 40px; height: 40px; border-radius: 8px; margin-right: 8px;" />
@data.FirstName @data.LastName
</Template>
</RadzenDataGridColumn>
<RadzenDataGridColumn TItem="Employee" Title="Employee2" Sortable="false" Filterable="false">
<Template Context="data">
<RadzenImage Path="@data.Photo" style="width: 40px; height: 40px; border-radius: 8px; margin-right: 8px;" />
@data.FirstName @data.LastName
</Template>
</RadzenDataGridColumn>
<RadzenDataGridColumn TItem="Employee" Property="Title" Title="Title" />
<RadzenDataGridColumn TItem="Employee" Property="EmployeeID" Title="Employee ID" />
<RadzenDataGridColumn TItem="Employee" Property="HireDate" Title="Hire Date" FormatString="{0:d}" />
<RadzenDataGridColumn TItem="Employee" Property="City" Title="City" />
<RadzenDataGridColumn TItem="Employee" Property="Country" Title="Country" />
</Columns>
</RadzenDataGrid>
<EventConsole @ref=@console />
@code {
IEnumerable<Employee> employees;
EventConsole console;
protected override async Task OnInitializedAsync()
{
await base.OnInitializedAsync();
employees = dbContext.Employees;
}
DataGridSettings _settings;
public DataGridSettings Settings
{
get
{
return _settings;
}
set
{
if (_settings != value)
{
_settings = value;
InvokeAsync(SaveStateAsync);
}
}
}
private async Task LoadStateAsync()
{
await Task.CompletedTask;
var result = await JSRuntime.InvokeAsync<string>("window.localStorage.getItem", "Settings");
if (!string.IsNullOrEmpty(result))
{
_settings = JsonSerializer.Deserialize<DataGridSettings>(result);
}
}
private async Task SaveStateAsync()
{
await Task.CompletedTask;
await JSRuntime.InvokeVoidAsync("eval", $@"window.localStorage.setItem('Settings', '{JsonSerializer.Serialize<DataGridSettings>(Settings)}')");
}
protected override async Task OnAfterRenderAsync(bool firstRender)
{
if (firstRender)
{
await LoadStateAsync();
StateHasChanged();
}
}
}
Sandbox with clear windows:
And may be this also broke the work simple filters with enum on the page with saving / loading settings. The previous version works without problems.
Combination code for two demo pages:
@using System.Linq.Dynamic.Core
@using System.ComponentModel.DataAnnotations
@using System.Text.Json
@inject IJSRuntime JSRuntime
<RadzenDataGrid LoadData="LoadData" IsLoading=@isLoading Count="count" Data=@employees @bind-Settings="@Settings"
FilterMode="FilterMode.Simple" AllowFiltering="true" AllowPaging="true" AllowSorting="true" TItem="Employee" ColumnWidth="200px">
<Columns>
<RadzenDataGridColumn TItem="Employee" Property="ID" Title="ID" />
<RadzenDataGridColumn TItem="Employee" Property="Gender" Title="Gender" />
<RadzenDataGridColumn TItem="Employee" Property="Status" Title="Nullable Status" />
<RadzenDataGridColumn TItem="Employee" Property="Color" Title="Favorite Color (Display Attribute in Filter)" />
</Columns>
</RadzenDataGrid>
<EventConsole @ref=@console />
@code {
EventConsole console;
DataGridSettings _settings;
public DataGridSettings Settings
{
get
{
return _settings;
}
set
{
if (_settings != value)
{
_settings = value;
console.Log("Set");
InvokeAsync(SaveStateAsync);
}
}
}
private async Task LoadStateAsync()
{
console.Log("LoadStateAsync");
var result = await JSRuntime.InvokeAsync<string>("window.localStorage.getItem", "SettingsLoadData");
if (!string.IsNullOrEmpty(result))
{
_settings = JsonSerializer.Deserialize<DataGridSettings>(result);
}
}
private async Task SaveStateAsync()
{
console.Log("SaveStateAsync");
await JSRuntime.InvokeVoidAsync("eval", $@"window.localStorage.setItem('SettingsLoadData', '{JsonSerializer.Serialize<DataGridSettings>(Settings)}')");
}
int count;
IEnumerable<Employee> initialEmployees;
IEnumerable<Employee> employees;
bool isLoading = false;
public class Employee
{
public int ID { get; set; }
public GenderType Gender { get; set; }
public StatusType? Status { get; set; }
public ColorType Color { get; set; }
}
public enum GenderType
{
Ms,
Mr,
Unknown,
}
public enum ColorType
{
Red,
Green,
Blue,
[Display(Description = "Almond Green")]
AlmondGreen,
[Display(Description = "Amber Gray")]
AmberGray,
[Display(Description = "Apple Blue... ")]
AppleBlueSeaGreen,
//[Display(Description = "Miss", ResourceType = typeof(ResourceFile)] localization example
[Display(Description = "Azure")]
AzureBlue,
}
public enum StatusType
{
Inactive,
Active,
}
protected override void OnInitialized()
{
initialEmployees = Enumerable.Range(0, 10).Select(i =>
new Employee
{
ID = i,
Gender = i < 3 ? GenderType.Mr : i < 6 ? GenderType.Ms : GenderType.Unknown,
Status = i < 3 ? StatusType.Active : i < 6 ? StatusType.Inactive : null,
Color = i < 2 ? ColorType.Red: i < 4 ? ColorType.AlmondGreen : i < 6 ? ColorType.AppleBlueSeaGreen : ColorType.AzureBlue,
});
}
void LoadData(LoadDataArgs args)
{
console.Log("LoadData");
isLoading = true;
var query = initialEmployees.AsQueryable();
if (!string.IsNullOrEmpty(args.Filter))
{
query = query.Where(args.Filter);
}
if (!string.IsNullOrEmpty(args.OrderBy))
{
query = query.OrderBy(args.OrderBy);
}
count = query.Count();
employees = query.Skip(args.Skip.Value).Take(args.Top.Value).ToList();
isLoading = false;
}
}
Example:
@enchev I found, reverting a commit
committed 02:17PM - 31 Jul 23 UTC
solves the problem with simple filters with enum on the page with saving / loading settings
Issue with "DataGrid save/load settings with 2+ columns without property" still relevant
enchev
August 10, 2023, 11:06am
6
committed 10:51AM - 10 Aug 23 UTC
Before this commit columns without properties where ignored during save/load of settings. Now every column have UniqueID and save/load settings will work with these columns too.
And that's great, we really need this feature. If not for the problem that I described in the first/second post
You did get bug it on https://blazor.radzen.com/ , not on localhost?
enchev
August 10, 2023, 11:25am
8

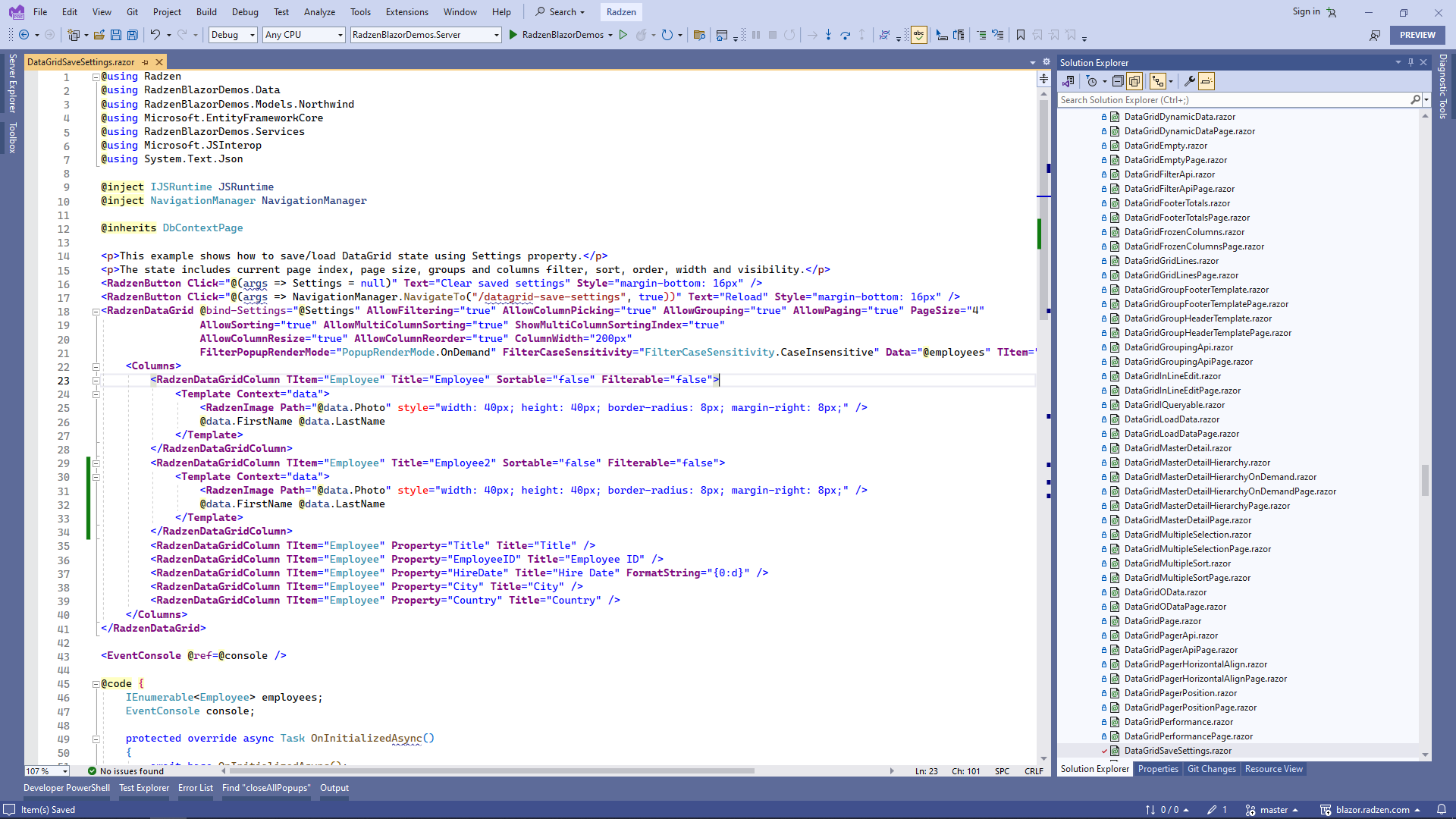

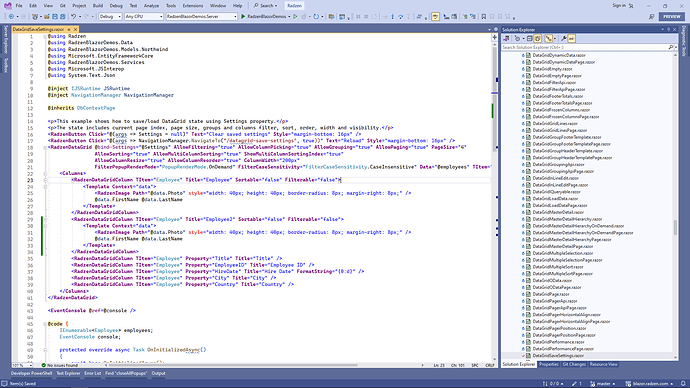

I've tested your example code directly in the Visual Studio project:

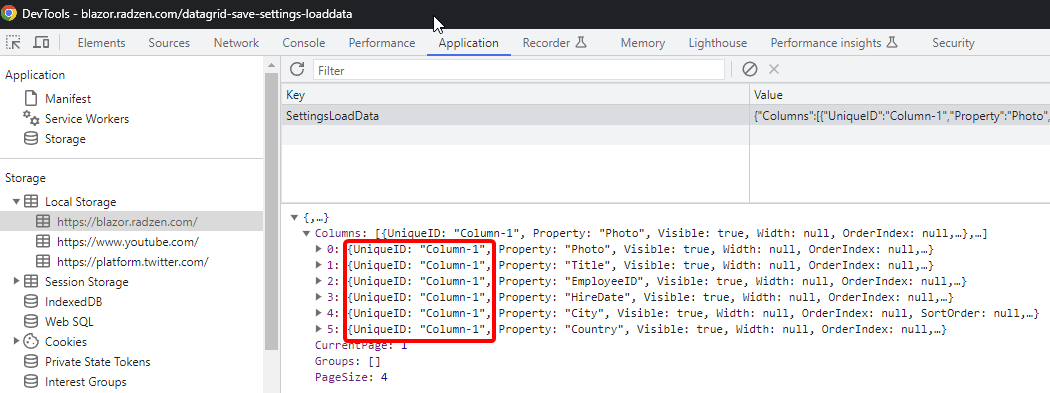

Check what you have in the result after JsonSerializer.Deserialize() - you might have something invalid.
enchev
August 10, 2023, 12:04pm
9
I've just published 4.15.1 with improvement related to column UniqueID (column index in the collection will be used instead GUID) - might resolve the problem you have:
committed 11:56AM - 10 Aug 23 UTC
@enchev thanks for the quick attempt to fix the problem, this idea seems to me better than base64, but it doesn't seem to work as intended

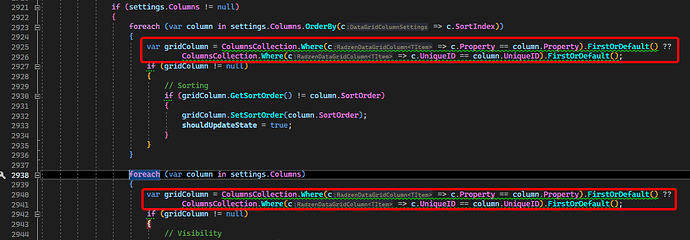

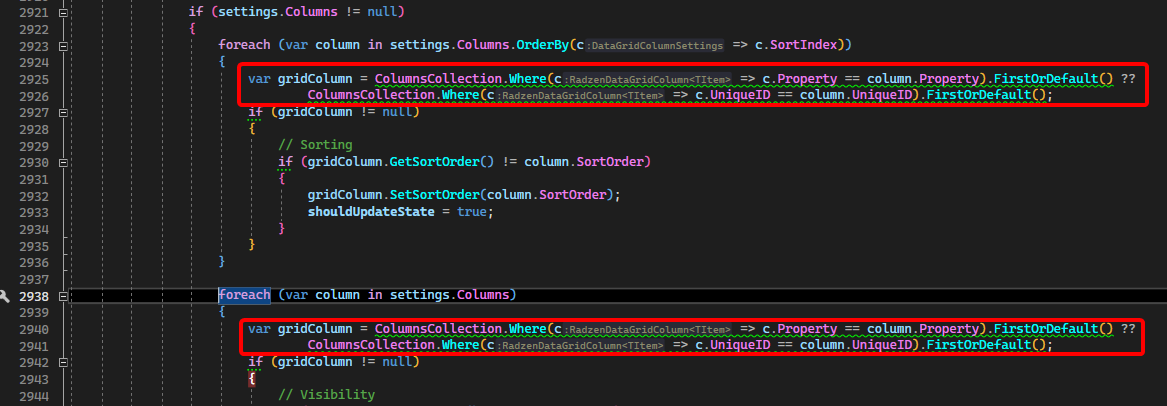

I think there is a bug here
If there are 2 or more fields with c.Property == null, then FirstOrDefault always takes the first field.
I tried using only ColumnsCollection.Where(c => c.UniqueID == column.UniqueID).FirstOrDefault()
enchev
August 10, 2023, 1:41pm
12
We've decided to not auto set UniqueID for the columns and to restore the old logic where settings for columns without Property will not be saved/loaded. If you need to save/load settings for such column you can set manually UniqueID. Just published Radzen.Blazor 4.15.2.
New demo code:
@using Radzen
@using RadzenBlazorDemos.Data
@using RadzenBlazorDemos.Models.Northwind
@using Microsoft.EntityFrameworkCore
@using RadzenBlazorDemos.Services
@using Microsoft.JSInterop
@using System.Text.Json
@using System.Linq.Dynamic.Core
@inject IJSRuntime JSRuntime
@inject NavigationManager NavigationManager
@inherits DbContextPage
<RadzenButton Click="@(args => Settings = null)" Text="Clear saved settings" Style="margin-bottom: 16px" />
<RadzenButton Click="@(args => NavigationManager.NavigateTo("/datagrid-save-settings-loaddata", true))" Text="Reload" Style="margin-bottom: 16px" />
<RadzenDataGrid @ref=grid @bind-Settings="@Settings" AllowFiltering="true" AllowColumnPicking="true" AllowGrouping="true" AllowPaging="true" PageSize="4"
AllowSorting="true" AllowMultiColumnSorting="true" ShowMultiColumnSortingIndex="true"
AllowColumnResize="true" AllowColumnReorder="true" ColumnWidth="200px"
FilterPopupRenderMode="PopupRenderMode.OnDemand" FilterCaseSensitivity="FilterCaseSensitivity.CaseInsensitive"
Data="@employees" IsLoading=@isLoading Count="@count" LoadData=@LoadData TItem="Employee">
<Columns>
<RadzenDataGridColumn TItem="Employee" Title="Custom 1" Sortable="false" Filterable="false">
<Template Context="data">
<RadzenImage Path="@data.Photo" style="width: 40px; height: 40px; border-radius: 8px; margin-right: 8px;" />
@data.FirstName @data.LastName
</Template>
</RadzenDataGridColumn>
<RadzenDataGridColumn TItem="Employee" Title="Custom 2" Sortable="false" Filterable="false">
<Template Context="data">
<RadzenImage Path="@data.Photo" style="width: 40px; height: 40px; border-radius: 8px; margin-right: 8px;" />
@data.FirstName @data.LastName
</Template>
</RadzenDataGridColumn>
<RadzenDataGridColumn TItem="Employee" Property="Title" Title="Title" />
<RadzenDataGridColumn TItem="Employee" Property="EmployeeID" Title="Employee ID" />
@* <RadzenDataGridColumn TItem="Employee" Property="HireDate" Title="Hire Date" FormatString="{0:d}" />
<RadzenDataGridColumn TItem="Employee" Property="City" Title="City" />
<RadzenDataGridColumn TItem="Employee" Property="Country" Title="Country" /> *@
</Columns>
</RadzenDataGrid>
<EventConsole @ref=@console />
@code {
RadzenDataGrid<Employee> grid;
IEnumerable<Employee> employees;
EventConsole console;
int count;
bool isLoading = false;
bool loaded;
async Task LoadData(LoadDataArgs args)
{
console.Log("LoadData");
isLoading = true;
await Task.Yield();
var query = dbContext.Employees.AsQueryable();
if (!string.IsNullOrEmpty(args.Filter))
{
query = query.Where(args.Filter);
}
if (!string.IsNullOrEmpty(args.OrderBy))
{
query = query.OrderBy(args.OrderBy);
}
count = query.Count();
// Simulate async data loading
await Task.Delay(200);
employees = await Task.FromResult(query.Skip(args.Skip.Value).Take(args.Top.Value).ToList());
isLoading = false;
loaded = true;
}
DataGridSettings _settings;
public DataGridSettings Settings
{
get
{
return _settings;
}
set
{
if (_settings != value)
{
_settings = value;
console.Log("Set");
InvokeAsync(SaveStateAsync);
}
}
}
private async Task LoadStateAsync()
{
console.Log("LoadStateAsync");
var result = await JSRuntime.InvokeAsync<string>("window.localStorage.getItem", "SettingsLoadData");
if (!string.IsNullOrEmpty(result))
{
_settings = JsonSerializer.Deserialize<DataGridSettings>(result);
}
}
private async Task SaveStateAsync()
{
console.Log("SaveStateAsync");
await JSRuntime.InvokeVoidAsync("eval", $@"window.localStorage.setItem('SettingsLoadData', '{JsonSerializer.Serialize<DataGridSettings>(Settings)}')");
}
protected override async Task OnAfterRenderAsync(bool firstRender)
{
if (firstRender || loaded)
{
await LoadStateAsync();
if (loaded)
{
loaded = false;
await Task.Yield();
await grid.Reload();
loaded = false;
}
}
}
}
